The Role of Metrology in SpaceX’s Engineering and Mission Success

Metrology, the science of measurement, is a foundational pillar in SpaceX’s engineering ecosystem, underpinning every stage from design and manufacturing to assembly, testing, safety, and quality assurance. In the aerospace industry, where even micrometer-level deviations can lead to mission failure or loss of life, SpaceX relies on metrology to meet the extreme precision, performance, and safety standards required for its vehicles and systems.

Metrology ensures that critical components, such as the Merlin and Raptor engines, propellant tanks, stage structures, and spacecraft heat shields, are manufactured within tight tolerances. Advanced tools like CNC-integrated sensors, coordinate measuring machines (CMMs), 3D scanners, laser interferometers, and torque and pressure devices validate dimensions, alignment, structural integrity, and functional fit. Techniques such as Geometric Dimensioning and Tolerancing (GD&T) further define the relationships between part features to ensure flawless integration.

Metrology is integral to safety and plays a vital role in fabricating crew-critical systems, including hatch seals, cabin pressurization, life support units, and escape engines. These systems are meticulously measured and tested to prevent leaks, thermal failures, or mechanical malfunctions. Accurate metrology in weld verification, fluid line assembly, and structural rigging for SpaceX employees prevents workplace accidents during high-risk operations.

Reliability is equally dependent on metrology. Reusable systems like Falcon 9 first stages and Starship vehicles require precise inspection after every flight to detect wear, deformation, or fatigue, ensuring that only structurally sound hardware is reflown. Combined thermal and pressure testing, guided by metrological instrumentation, simulates real-world space conditions, verifying performance under coupled stress environments.

Ultimately, metrology ensures repeatability, quality, and accountability, enabling SpaceX to confidently launch humans and payloads. It is the silent backbone behind every successful mission, guarding against failure, enabling innovation, and upholding the safety of astronauts and crew at every step.

Metrology’s Critical Role in Safety

Metrology plays a critical, often life-saving role in safeguarding both SpaceX astronauts and team members. From the factory floor to the launchpad and into orbit, accurate measurements ensure that every system functions correctly, every material performs as expected, and every component interfaces seamlessly. A failure in metrology can lead to hardware malfunction, mission failure, injury, or loss of life. Below is a detailed breakdown of how metrology directly impacts the lives and safety of SpaceX personnel.

Every measurement taken during the design and build of a SpaceX rocket is not just a number; it’s a commitment to safety. Metrology ensures repeatable, certifiable quality that astronauts can stake their lives on, and employees can trust while building and testing high-risk aerospace systems. It is, quite literally, the margin between life and death in spaceflight. For example:

1. Astronaut Safety: In-Flight Systems and Life Support
   • Cabin Pressure and Sealing
     • Metrology tools such as CMMs, laser scanners, and pressure gauges ensure:
       • Proper alignment and sealing of hatches, docking ports, and windows.
       • Leak-free integration of life support systems like oxygen delivery and cabin pressurization.
     • A single improperly machined or misaligned surface could result in a slow or catastrophic decompression event.
   • Thermal Protection and Heat Shield Integrity
     • Metrology ensures that ceramic heat shield tiles on Dragon or Starship are:
       • Properly sized, spaced, and affixed to prevent hot gas infiltration during reentry.
       • Not warped or degraded beyond safe limits after reuse.
     • Failure to maintain these tolerances can jeopardize the capsule and crew during atmospheric reentry.
   • Avionics and Control System Reliability
     • Astronauts rely on flawless navigation, life support control, and telemetry.
     • Electronic housings, sensor mounts, and internal circuitry require micron-level precision during assembly, verified using micrometers, height gauges, and digital calipers.
     • Errors in alignment or vibration tolerance can lead to avionics failure or mission-critical faults.
2. Employee Safety: Manufacturing and Assembly
   • Safe Handling of Pressurized Systems
     • Technicians assemble tanks, manifolds, and valves under guidance of strict torque, pressure, and dimensional tolerances.

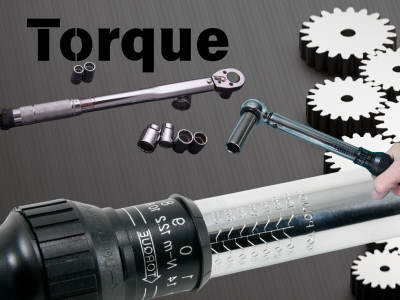

     • Tools such as thread gauges, bore gauges, and torque wrenches prevent:
       • Over-tightening that might crack fittings
       • Under-tightening that could lead to dangerous leaks or explosions
     • Helium leaks or propellant line failures can be hazardous—even fatal—without proper metrological controls.
   • Structural Rigging and Crane Operations
     • Laser trackers and metrology-based alignment systems ensure:
       • Safe lifting and positioning of multi-ton assemblies, like rocket stages or engine clusters.
       • Proper balance and load distribution to prevent crane tip-over or dropped components, which could severely injure the ground crew.
   • High-Temperature Equipment Safety
     • SpaceX workers operate furnaces, autoclaves, and welding systems.
   • Thermocouples, IR sensors, and pyrometers ensure these tools operate within safe and controlled temperature limits, avoiding:
     • Burn hazards: Thermal runaway reactions
3. System Reliability and Redundancy Assurance
   • Preventing Mission Abort or In-Flight Failure
     • Metrology ensures that fasteners, fuel lines, gimbal mounts, actuators, and engines meet specifications to:
       • Withstand launch loads and vibrations
       • Maintain alignment and prevent in-flight separation or malfunction
     • Without this assurance, astronauts face higher risks of system failure, emergency aborts, or unplanned landing scenarios.
   • Escape and Abort Systems
     • The SuperDraco abort engines on Crew Dragon are part of the astronaut safety system.
     • Their injection ports, valves, and combustion chambers are dimensionally verified to deliver precise thrust vectoring.
     • Failure to meet exact metrology specs could result in abort malfunction during ascent, jeopardizing astronaut lives.
4. Quality Assurance and Failure Prevention
   • Early Detection of Defects
     • Using Non-Destructive Inspection (NDI) techniques—like laser scanning and X-ray metrology—SpaceX identifies:
       • Cracks, voids, or inclusions in welds
       • Deformations caused by heat or stress
       • This prevents hazardous hardware from entering service, reducing the risk of mechanical failures affecting astronauts or ground staff.
   • Traceability for Safety Investigation
     • Every metrology reading is logged and tied to a digital thread.
     • If a failure or anomaly occurs, engineers can trace the exact measurement data for any part involved.
     • This supports root cause analysis and improves future safety protocols, critical in a culture of continuous improvement.
5. Ground Crew and Launch Site Protection
   • Launch Pad Structures and Interfaces
     • Laser interferometry and 3D scanning ensure precise alignment of:
       • Rocket hold-down clamps
       • Fueling umbilical’s
       • Crew access arms
     • Improper alignment could lead to:
       • Fuel spills, delayed lift off, Hardware collisions, or structural failure

Typical areas where Metrology impacts safety systems.

Area	Metrology Tool	Purpose	Risk Avoided
Cabin and Hatch Seals	CMMs, Pressure Sensors	Ensure airtight seals	Decompression
Heat Shields	Laser Scanners	Tile alignment, gap control	Burn-through on reentry
Fuel Systems	Torque Wrenches, Bore Gauges	Prevent leaks	Fire/explosion
Engine Assembly	Micrometers, Thread Gauges	Thrust symmetry, cooling	Chamber failure
Ground Operations	Laser Trackers	Pad alignment and lift safety	Dropped loads, leaks
Abort Systems	Digital Calipers, CMMs	Reliable escape trajectory	Abort failure

Metrology, a Foundational Pillar

Metrology at SpaceX is not just about ensuring parts meet specifications. It’s deeply woven into the company’s vertical integration strategy, rapid iteration, and reusability. It enables SpaceX to move fast without compromising reliability or safety, and supports its broader vision of sustainable spaceflight. Here are some examples of how metrology plays a critical role across SpaceX’s workflow:

1. Design and Engineering Phase
   • Metrology impacts design even before a single component is manufactured:
     • Tolerance Analysis: Engineers use metrology data to define precise tolerances in CAD models. These tolerances ensure that parts fit and function together under extreme conditions like high heat, vibration, and vacuum.
     • Simulation Validation: Computational models used in fluid dynamics, thermal analysis, and structural integrity are validated using metrology-based measurements of prototypes and test articles.
     • Material Characterization: SpaceX uses metrology tools (e.g., interferometers, profilometers) to measure surface roughness and material properties that influence aerodynamic behavior and thermal resistance.
2. Manufacturing and Fabrication
   • SpaceX designs and builds a significant portion of its rockets and spacecraft in-house, which requires stringent control over dimensions and geometry:
     • Precision Machining: CNC machines rely on metrological feedback to ensure components like engine parts, tanks, and fuselage sections are fabricated within microns of specified dimensions.
     • Geometric Dimensioning and Tolerancing (GD&T): Metrology tools validate that each part conforms to GD&T standards, critical for mating parts and assemblies, such as Merlin engines to Falcon 9’s thrust structure.
     • Additive Manufacturing (3D Printing): In printed parts (like SuperDraco engine chambers), metrology is used to verify internal geometries, often with industrial CT scans or laser scanning.
     • Large-Scale Measurements: Laser trackers and photogrammetry systems are used for measuring large assemblies such as rocket stages, composite fairings, or the Starship’s body, ensuring structural alignment and symmetry.
3. Assembly and Integration
   • During the integration of various components and systems, metrology ensures that alignment and positioning are perfect:
     • Alignment of Avionics and Propulsion Systems: Sensors, thrusters, and wiring harnesses must be installed with sub-millimeter accuracy to maintain optimal performance and avoid failure during launch or in orbit.
     • Modular Assembly Checks: When stages are joined or spacecraft docked, precision laser measurement ensures alignment that prevents stress buildup or thermal mismatch.
4. Testing and Validation
   • Metrology supports SpaceX’s rigorous qualification and acceptance testing:
     • Thermal and Pressure Testing: After thermal cycling or pressure testing, metrological inspections confirm that dimensions and tolerances haven’t drifted due to material fatigue or deformation.
     • Dynamic Testing (Vibration, Acoustic): Post-test inspections use metrology tools to assess any micro-shifts or part degradation.
5. Quality Control and Non-Conformance Analysis
   • Perhaps most critically, metrology underpins quality assurance and continuous improvement:
     • First-article inspection (FAI): To validate manufacturing methods, initial parts from each manufacturing batch are measured in detail using coordinate measuring machines (CMMs).
     • In-Process and Final Inspections: Optical scanners, X-ray systems, and tactile probes check dimensions and detect internal flaws in welds or castings.
     • Failure Analysis: When components fail or show anomalies, high-resolution metrology techniques (e.g., scanning electron microscopy, 3D surface mapping) help pinpoint root causes.
6. Launch Site and Reusability Operations
   • Metrology doesn’t stop at the factory:
     • Launch Pad Alignment: Critical ground support equipment must interface precisely with the rocket. Laser alignment ensures systems like fuel umbilicals, clamps, and swing arms function safely.
     • Reusability Inspections: After recovery, Falcon 9 boosters and Dragon capsules are inspected using metrology tools to assess wear, tear, and deformation, guiding refurbishment decisions.
7. Digital Thread and Data Integration
   • SpaceX integrates metrology data into its digital manufacturing ecosystem:
     • Real-Time Feedback: Measurement data informs adaptive manufacturing techniques and real-time quality adjustments.
     • Traceability: Every component has a digital footprint, including metrology logs, enabling traceability from raw material to launch.
     • Machine Learning and Predictive Maintenance: Metrology data feeds into analytics platforms to predict future failure modes and optimize component lifecycle management.

Advanced Metrology Tools and Measurement Instruments

Below are detailed examples of how these tools are used in practice:

1. CNC Machining and Metrology Integration
   • Application: Merlin Engine Components
     • CNC machines mill and turn high-strength alloys like Inconel for engine nozzles, turbopump housings, and injector plates.
     • After machining, metrology-grade measurement probes within CNC machines perform in-process inspection to validate critical dimensions (e.g., fuel channel depths, hole patterns).
     • These machines often operate with closed-loop feedback, using real-time measurements to adjust toolpaths and minimize cumulative error.
   • Example Use Case:
     • The Merlin turbopump impeller must maintain tight concentricity and balance tolerances. Any deviation could cause vibration or catastrophic failure during operation.
     • CNC tools are programmed using GD&T callouts that define not just size, but form, orientation, and position tolerances (e.g., true position, circular runout).

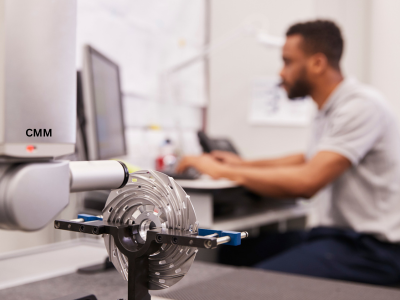

2. Coordinate Measuring Machines (CMMs)
   • Application: Falcon 9 Interstage, Tank Domes, and Engine Mounts
     • CMMs are used for high-precision dimensional inspection of complex, multi-surface components.
     • Large gantry-style or portable arm CMMs measure parts like liquid oxygen tank domes, checking for warping or elliptical deformation after welding.
     • Smaller CMMs are used in cleanrooms for critical avionics housing and engine component inspection.
   • Example Use Case:
     • The Falcon 9 interstage, a carbon fiber and aluminum structure, must precisely interface with both upper and lower stages.
     • After layup and curing, CMMs check the bolt hole positions, flange flatness, and datum alignment to ensure structural integrity under extreme dynamic loads.
3. Geometric Dimensioning and Tolerancing (GD&T)
   • GD&T is used extensively in SpaceX’s technical drawings to define functional relationships between features—not just their nominal sizes.
     • Application: Raptor Engine Combustion Chambers & Starship Heat Shield Panels
     • True position tolerancing ensures that coolant channels and injector holes align with manifolds under high pressure.
     • Profile tolerances define the curvature of combustion chambers, which must match CFD-optimized designs for thermal efficiency.
     • Flatness and parallelism control is essential in heat shield tile mounting brackets—any deviation could cause uneven thermal loading or panel detachment during reentry.
   • Example Use Case:
     • The Raptor engine thrust chamber includes regenerative cooling channels that must be within microns of the designed path to avoid hot spots.
     • GD&T ensures that channels maintain precise relative distances and consistent wall thickness, verified via CMMs and industrial CT scans.

Combined Example: Falcon 9 Octaweb Assembly

The Octaweb is the structural base that mounts all 9 Merlin engines on the Falcon 9 first stage.

• CNC-machined from aluminum and titanium blocks.
• GD&T ensures that engine bores are precisely located in 3D space relative to the vehicle’s thrust axis and center of gravity.
• After machining:
  • A CMM maps the entire structure, checking bolt pattern positions, flatness of mounting surfaces, and concentricity of engine bores.
  • Laser trackers may supplement the process due to the large scale of the part.
• This tight control ensures uniform engine thrust alignment, minimizing torque and vibration.

1. Laser Interferometry
   • Laser interferometry provides ultra-precise distance and flatness measurements, often at the nanometer to micrometer level. This technology is critical where long-range alignment, flatness, and vibration sensitivity are key.
   • Applications:
     • Falcon 9 Stage and Interstage Alignment:
       • Used to verify the alignment between first and second stage interface points.
       • Ensures axial symmetry of the vehicle to minimize off-axis thrust and stress loads during launch.
     • Starship’s Propellant Tank Fit-Up:
       • During assembly of CH4 and LOX tanks, laser interferometry is used to check for cylindrical roundness and flatness of weld flanges before tank domes are fused.
       • Helps prevent sealing issues and misalignment that could lead to leaks under cryogenic conditions.
     • Thrust Structure Validation:
       • Interferometers help validate the planarity of engine mounting plates, ensuring that Raptor engines are seated without angular offsets.
2. 3D Scanning (Laser & Structured Light Scanners)
   • 3D scanners generate high-resolution digital models of complex parts and large assemblies. These are compared against CAD models to detect discrepancies in geometry, surface deformation, or assembly fit.
   • Applications:
     • Heat Shield Tile Inspection on Starship:
       • Structured light scanners measure tile surface contours, gaps, and mounting points.
       • Ensures correct thermal protection alignment and detects warping after exposure to high-temperature reentry tests.
     • Weld Inspection on Falcon 9 Tanks:
       • 3D scanners capture surface profiles of longitudinal and circumferential welds.
       • Deviations from expected profiles (bulges, shrinkage) are flagged for rework.
     • Fairing and Nose Cone Validation:
       • The aerodynamic fairings and nose cones are scanned to check form conformity, essential for reducing drag and ensuring stable flight dynamics.
     • Additive-Manufactured Engine Parts:
       • Raptor engine components produced via 3D printing (e.g., injector heads) are scanned internally and externally for voids, distortions, or overbuilds not visible to the naked eye.
3. Precision Form Measuring Instruments
   • These tools measure surface roundness, flatness, cylindricity, and surface roughness with micron-level resolution. They are often contact-based and used on parts where functional performance is tightly tied to surface characteristics.
   • Applications:
     • Turbo Pump Shafts and Bearings (Raptor & Merlin Engines):
       • Form testers measure runout, coaxiality, and roundness of rotating shafts.
       • Surface roughness measurements ensure low friction and minimal thermal buildup, which is crucial at tens of thousands of RPM.
     • Valve Seats and Nozzle Throats:
       • In rocket engines, internal surfaces must maintain precise contours to control combustion and expansion flow.
       • Profilometers and roundness testers verify the geometry of the throat and bell to preserve CFD-derived performance.
     • Actuator and Gimbal Surface Finishes:
       • Flight control surfaces and actuator components are checked for micro-roughness to ensure proper lubrication and fatigue resistance under vibration loads.

Combined Use Case: Starship Tank Dome Manufacturing

Steps Involving Metrology:

1. Forming the Dome Halves:
2. Assembly Fit-Up:
   • Laser interferometry checks the alignment of segments before welding.
3. Post-Weld Inspection:
   • 3D scanners and form testers assess for warping or internal shrinkage after weld cooling.
4. Surface Quality Check:
   • Profilometers evaluate the inner surface finish to meet cryogenic performance needs.

These high-precision metrology techniques enable SpaceX to streamline fabrication, detect deviations early, and ensure the safety and performance of reusable spacecraft and launch vehicles.

Tool	SpaceX Application	Example Use
CNC Machines	Machining of engines, structural frames, and tanks	Impellers, injector plates, and fairing components
CMMs	Dimensional inspection of critical parts	Tank domes, interstage, avionics mounts
GD&T	Specification of tolerances in design	True position for engine holes, profile for heat shield panels
Laser Interferometry	Structural alignment and flatness checks	Stage mating, thrust plate planarity
3D Scanning (Laser/Light)	Form inspection and CAD comparison	Tile fitting, weld distortion, and fairing geometry
Precision Form Instruments	Roundness, flatness, and surface finish of small precision parts	Turbo pump shafts, actuator surfaces, and nozzles

Precision Dimensional Metrology Tools

Here are detailed examples of how each tool is applied across SpaceX’s workflow:

1. Gauge Blocks (Slip Gauges)
   • Applications:
     • Tool Calibration: Used as a reference standard to calibrate micrometers, calipers, and dial indicators in SpaceX’s metrology labs.
     • Machine Setup: Machinists use gauge blocks to verify and set up CNC machines for critical dimensions, such as:
       • Injector plate thicknesses
       • Valve stem lengths
     • Ensures that machining operations meet tight tolerances (down to microns) as defined by GD&T.
2. Calipers (Vernier and Digital)
   • Applications:
     • In-Process Machining Checks:
       • Used by machinists to quickly measure outer dimensions, depths, and step distances of components like:
         • Engine housings
         • Valve bodies
         • Tank skin panel thickness
     • Especially useful during manual machining and first-article inspections.
   • Example:
     • During Raptor engine assembly, calipers may be used to measure the diameter of fuel injector ports before reaming or cleaning.
3. Micrometers (Outside, Inside, Depth)
   • Applications:
     • Used to measure critical tolerances requiring higher accuracy than calipers, typically within ±1 μm.
   • Outside micrometers measure shaft diameters for:
     • Turbopump rotors
     • Gimbal bearing housings
   • Depth micrometers validate:
     • Cooling channel depths in regeneratively cooled engines
     • Recessed grooves for seals and O-rings in propellant systems.
4. Bore Gauges
   • Applications:
     • Used to measure internal bore diameters and roundness of cylindrical components.
     • Crucial for:
       • Raptor and Merlin engine combustion chambers
       • Valve seats and nozzle throats
       • Hydraulic cylinder bores in control actuators
   • Example:
     • When verifying Raptor injector ring bores, bore gauges help ensure concentricity and a tight clearance fit for high-pressure sealing.
5. Thread Gauges (Plug & Ring Gauges)
   • Applications:
     • Used to verify thread form, pitch, and tolerance class of internal and external threads on critical fasteners and mating parts.
     • SpaceX applies these gauges for:
       • Pressurization line fittings
       • Engine mounting hardware
       • Pressure vessel cap threads
   • Example:
     • A GO/NO-GO plug gauge may be used to ensure a valve manifold’s threaded port matches the thread specs exactly—ensuring leak-free, high-pressure connections.
6. Other Dimensional Tools (Height Gauges, Dial Indicators, Feeler Gauges)
   • 🔹 Applications:
     • Height Gauges:
       • Measure vertical distances on machined parts and assemblies like mounting bracket clearances or avionics housing offsets.
     • Dial Indicators:
       • Used to check flatness, parallelism, and runout on rotating parts like:
         • Pump shafts
         • Actuator arms
     • Feeler Gauges:
       • Check gap tolerances in flanges, couplings, and shim fits on structural interfaces.

Tool	Application Component	Measured Feature
Gauge Blocks	CNC tool setup	Reference dimensions
Calipers	Starship flanges	Outer/step dimensions
Micrometers	Turbopump shafts	Shaft diameter
Bore Gauges	Raptor injectors	Bore diameter & concentricity
Thread Gauges	COPV and valve threads	Thread pitch and fit
Dial Indicators	Merlin engine rotors	Shaft runout
Feeler Gauges	Starship tile mounts	Gap consistency

Quality Assurance Role

All of these tools feed into SpaceX’s manufacturing quality assurance protocols:

• Final dimensional reports logged for traceability.
• Used in First Article Inspection (FAI) and In-Process Inspection (IPI) programs.
• Integrated with digital manufacturing records tied to specific Falcon 9 or Starship units.

Torque Metrology Devices

Below are detailed examples of how SpaceX applies torque measurement in various key areas:

1. 1. Engine Mounting and Integration
   • Application: Merlin and Raptor Engine Installation
     • Torque-controlled tools are used to install:
       • Raptor engines to the Starship thrust puck.
       • Merlin engines to the Falcon 9 Octaweb.
     • Fasteners must be tightened with exact torque values (often within ±2%) to:
       • Avoid over-tightening (which can cause thread damage or galling).
       • Prevent under-tightening (which can cause loosening under vibration or dynamic loads).
     • Digital torque wrenches are often used here, with data logging capabilities for traceability.
2. Airframe and Structural Assembly
   • Application: Interstage, Tank Sections, Nose Cone Attachments
     • Assembly of structural components like bulkheads, skin panels, and load rings involves high-precision bolting.
     • Torque wrenches ensure uniform clamping loads across large flanged joints, reducing stress concentrations.
     • This is especially critical in pressurized components, where uneven torque can lead to leak paths or distortion under cryogenic conditions.
   • Example:
     • The bolting of Starship’s common dome and thrust dome to the midsection must be executed with uniform torque to ensure correct load paths during ascent and reentry.
3. Stage Separation Systems
   • Application: Falcon 9 Pneumatic Separation Bolts
     • Torque calibration ensures that bolted joints in the separation mechanism can withstand launch loads without seizing or failing.
     • SpaceX uses calibrated breakaway torque tests to validate bolt preload and system response times.
4. Control Surfaces and Actuation Systems
   • Application: Grid Fins, Aero Surfaces, Starship Flaps
     • Grid fin assemblies on Falcon 9 and flaps on Starship must endure intense aerodynamic loading.
     • Bolts for actuator mounts, pivot points, and hydraulic fittings are torqued using preset values, verified against specifications defined in GD&T and FEA data.
     • Mis-torqued hardware in these areas could lead to flutter or control loss during descent and reentry.
5. Tank and Fluid System Integration
   • Application: COPVs, Cryogenic Valves, Pneumatic Manifolds
     • Connections in fluid lines—like methane/LOX feed lines or pressurization systems—must be torqued precisely to avoid:
       • Stress cracks from over-torquing.
       • Gas or propellant leaks from under-torquing.
     • SpaceX employs torque transducers with feedback loops on critical assemblies to validate each joint
6. Reusable Hardware Verification
   • Application: Booster Turnaround (Falcon 9), Heat Shield Panels (Starship)
     • After flight and recovery, reusable elements are disassembled and reassembled.
     • Torque values are re-verified using digital torque tools to ensure repeatability and no degradation in bolted joint strength.
     • Starship’s heat shield tiles are installed using torque-limited installation tools to ensure they are secure but not cracked.
7. Tool Calibration and Quality Assurance
   • Torque devices are routinely calibrated using torque analyzers and certified torque testing systems.
   • All torque events are logged in a digital quality management system to ensure traceability from production to flight.

SpaceX uses torque metrology to ensure:

• Correct preload on fasteners
• Flight safety and repeatability
• Structural and dynamic integrity
• Precision in control systems and pressure vessels

Torque Device Application Examples

Torque Device Type	Application Area	Example Use
Click-Type Torque Wrench	General assembly	Nose cone flanges, grid fin mounts
Digital Torque Wrench	Engine and actuation systems	Raptor engine flange bolts
Torque Screwdriver	Electronics and avionics modules	PCB mountings, control panel installation
Torque Transducer Systems	Fluid system assembly	LOX/CH4 lines, pressure vessel fittings
Hydraulic Torque Tools	Large-diameter fasteners	Interstage flange joints, Starship dome bolts

Temperature and Pressure Metrology Applications

SpaceX extensively uses temperature and pressure metrology devices during the manufacturing and fabrication of Starship, Falcon 9, and their critical assemblies to monitor process integrity, material behavior, and performance compliance. These measurements are essential in welding, composite curing, cryogenic tank fabrication, and propulsion system assembly, where deviations can lead to catastrophic failure. Here are examples across several applications:

1. Temperature Devices (Thermocouples, Infrared Sensors, Pyrometers, Thermal Cameras)
   • Applications in Manufacturing:
     • Welding Operations (Starship Tank Domes, Falcon 9 Stages)
     • Embedded thermocouples and infrared pyrometers monitor weld pool temperatures during friction stir welding or TIG welding of cryogenic tank structures.
   • Proper temperature control ensures:
     • Avoidance of microcracking
     • Correct grain structure
     • Full penetration without burn-through
   • Heat Treatment and Post-Weld Stress Relief
   • Thermocouples are used to validate controlled ramp-up and cooldown cycles in large heat treatment ovens used for:
     • Stress-relieving Falcon 9 interstage and Merlin engine mounts
     • Aging treatments for aluminum-lithium alloys in tank components
   • Composite Layup and Curing (Starlink Fairings, Interstage Panels)
   • Thermocouples and thermal blankets embedded in autoclaves or ovens ensure that prepreg composite layers reach the target cure temperature (typically 120°C–180°C).
   • Uniformity across large areas is verified using thermal imaging to detect hot/cold spots.
   • Engine Component Fabrication
   • In Raptor engine fabrication, precise thermal control during brazing and coating is required.
   • Pyrometers monitor surface temps during coating of combustion chambers and nozzles, ensuring metallurgical compatibility and performance.
2. . Pressure Devices (Strain Gauges, Pressure Transducers, Manometers)
   • Applications in Fabrication and Testing:
     • Cryogenic Tank Proof Testing (Starship & Falcon 9)
     • Tanks undergo hydrostatic and pneumatic proof tests to validate structural integrity.
   • Pressure transducers monitor internal pressure in real-time:
     • Starship’s stainless steel CH4/LOX tanks may be pressurized to >6 bar with liquid nitrogen or helium.
     • Deviations trigger aborts to avoid bursting.
   • Engine Weld Seal Testing (Raptor, Merlin)
     • Welded engine chambers and ducts are pressure tested:
       • Internal helium leak checks use ultra-sensitive pressure decay sensors.
       • Any pressure drop indicates a microfissure or poor joint.
   • Pneumatic Line Testing (Stage Separation Systems, Attitude Control)
     • High-pressure pneumatic systems (used in grid fin actuation or stage separation) are tested using digital manometers and differential pressure sensors to ensure no leaks and correct operating limits.

Examples: Starship Tank Manufacturing Process

Stage	Temperature Devices	Pressure Devices
Welding	Thermocouples monitor joint temperature	Not typically used
Post-weld Heat Treatment	Thermocouples and thermal cameras validate stress relief.	—
Proof Testing	—	Pressure transducers monitor LN2 pressurization.
Leak Detection	—	Helium mass spectrometer and pressure sensors

Other Applications Across SpaceX Programs

• Falcon 9 First Stage Refurbishment:
  • Thermal sensors check for hot spots or thermal damage post-reentry, especially around engine bays and COPVs.
  • Pressure checks validate the integrity of reused tanks and pressurization lines.
• Raptor Engine Assembly:
  • Precision pressure gauges monitor coolant channel pressurization in the combustion chamber.
  • Ensures cooling paths are unobstructed and welded channels hold required pressures.
• Environmental Control System (Dragon Capsule):
  • Pressure sensors ensure cabin pressurization systems work properly.
  • Thermal sensors ensure electronics and life support hardware remain within operational ranges.

Device Type	Used In	Example Use
Thermocouples, IR Sensors	Welding, curing, heat treatment	Tank welding, autoclave curing
Pyrometers, Thermal Cameras	Surface temperature validation	Nozzle coatings, large panel monitoring
Pressure Transducers	Tank pressurization and leak tests	Starship tank testing
Manometers, Strain Gauges	Pneumatic and fluid systems	Grid fin actuator checks, engine weld seals

Temperature and pressure metrology devices are essential tools SpaceX uses to ensure material reliability, process accuracy, and performance safety from manufacturing through flight.

Temperature and pressure testing are critical verification processes in the design, manufacturing, and operational validation of SpaceX’s Starship and Falcon 9 systems. These tests ensure that components can withstand extreme launch environments, cryogenic propellants, reentry heating, and high-pressure propulsion systems without failure. Below is a detailed explanation of their importance with concrete examples from both vehicles:

TEMPERATURE TESTING

Importance

SpaceX components operate in an extensive temperature range—from -253°C for liquid hydrogen and LOX storage, to thousands of degrees Celsius on engine nozzles and reentry surfaces. Testing for thermal tolerance is critical to:

• Ensure material stability and structural integrity
• Prevent thermal fatigue and deformation
• Validate thermal insulation and protection systems
• Simulate real-world launch and reentry conditions

Examples of Temperature Testing:

1. Heat Shield Tile Testing (Starship)
   • Starship’s thermal protection system uses thousands of hexagonal ceramic tiles on the windward side.
   • These tiles undergo:
     • Thermal cycling tests in furnaces to simulate multiple reentries.
     • Laser and flame testing to validate performance against plasma heating temperatures (~1,500–2,000°C).
2. Cryogenic Tank Thermal Stress Testing
   • Both Falcon 9 and Starship use cryogenic propellants (LOX and CH4 or RP-1).
   • Tanks are tested with liquid nitrogen or LOX to simulate operational cryogenic loads.
   • Thermocouples measure:
     • Material contraction
     • Weld integrity under shrinkage
     • Thermal gradients across the dome and barrel sections
3. Avionics and Electronics
   • Flight computers and guidance systems are exposed to thermal vacuum testing.
   • Tested from -100°C to +125°C in thermal chambers to ensure reliable function in space and launchpad extremes.
4. . Raptor and Merlin Engine Coatings
   • Engine nozzles are exposed to extreme internal combustion temperatures (up to ~3,300°C).
   • Surface coatings and materials are tested for thermal resistance, ablation, and fatigue using high-temperature furnaces and plasma torches.

PRESSURE TESTING

Importance

SpaceX systems contain high-pressure cryogenic propellants, helium, nitrogen, and other fluids in tanks and lines. Components must be pressure-tested to:

• Prevent leakage or rupture
• Verify seal integrity
• Ensure system performance and safety
• Validate weld and joint strength

Examples of Pressure Testing

1. Cryogenic Tank Proof and Burst Testing
   • Starship’s stainless steel tanks and Falcon 9’s aluminum-lithium tanks are tested using:
     • Pneumatic proof testing (pressurized with gas, often helium or nitrogen)
     • Hydrostatic testing (pressurized with water or LN2)
   • Tanks are pushed to 1.25× to 1.5× their maximum operating pressure to ensure margin.
   • Burst tests are destructive, verifying the ultimate pressure tolerance of a design.
2. . Raptor Engine Channel and Chamber Pressure Testing
   • Raptor engines feature regeneratively cooled chambers with fuel circulating in tiny internal channels.
   • These channels are tested at extremely high pressure (often over 300 bar) using:
     • Helium pressurization is used to verify that welds have no leaks or microcracks.
3. COPV (Composite Overwrapped Pressure Vessel) Testing
   • Used for helium pressurization in Falcon 9’s second stage and engine systems.
   • COPVs are subjected to:
     • Cycle testing (thousands of pressure cycles)
     • Burst pressure validation
   • Ensures reliability under dynamic loads and long-duration missions.
4. Stage Separation System Validation
   • Pneumatic systems used to separate stages are tested with precision pressure sensors to ensure:
     • Correct actuation force
     • Response time under vacuum conditions
5. Propellant Line and Valve Testing
   • Valves and plumbing for methane, LOX, RP-1, and pressurization gases are tested using:
     • Helium mass spectrometry for leak detection
     • Pressure decay testing
   • Detects even micron-sized leaks, especially critical in zero-atmosphere environments.

Benefits of Temperature and Pressure Testing

Benefit	Explanation
Safety Assurance	Prevents failure from heat or overpressure during launch or reentry
Material Qualification	Confirms alloy and weld behavior in expected environments
Leak Prevention	Ensures sealing and joint integrity
Flight Certification	Required to qualify components for actual missions
Reusability Validation	Verifies durability across multiple flight cycles

Combined Thermal-Pressure Coupled Testing

Temperature and pressure testing are non-negotiable in aerospace manufacturing, especially for reusable systems like Falcon 9 and Starship. SpaceX ensures its components remain safe, reliable, and mission-ready by rigorously simulating the harshest possible flight conditions.

Further, combined thermal-pressure coupled testing is a critical engineering process at SpaceX that validates how components and assemblies behave when subjected to simultaneous temperature and pressure extremes, closely replicating real-world flight environments. While temperature and pressure testing alone are informative, their combined effect reveals complex interactions like material fatigue, seal degradation, thermal expansion under pressure, and structural warping that would otherwise be missed in isolated tests. Here’s an example of how this methodology is used:

What Is Thermal-Pressure Coupled Testing?

It involves exposing components or full assemblies to both elevated (or cryogenic) temperatures and high (or low) pressures—either simultaneously or in sequence—to simulate conditions such as:

• Launch ascent (high pressure + rising temperatures)
• In-space vacuum (low pressure + thermal cycling)
• Cryogenic propellant handling (low temperature + internal pressure)
• Atmospheric reentry (external high temperature + internal pressurization)

Why SpaceX Uses Coupled Testing

• Flight-Representative Conditions: A part may pass individual thermal or pressure tests but fail when both stressors are applied simultaneously.
• Material Behavior Under Load: Alloys used in cryogenic tanks (e.g., stainless steel for Starship) behave differently under pressure when cooled to -180°C.
• Seal & Joint Integrity: O-rings, welds, and bonded joints expand/contract with heat and must maintain a seal under pressure, especially in valves and tank domes.
• Dynamic Stress Simulation: Coupled tests can simulate rapid changes in temperature and pressure seen during fueling, launch, and in-space operation.

Examples of Coupled Testing at SpaceX

1. Cryogenic Tank Thermal-Pressure Testing (Starship & Falcon 9)
   • Process:
     • The tank is filled with liquid nitrogen (LN2) to simulate cryogenic conditions.
     • Then pressurized with helium or nitrogen gas while thermocouples and strain gauges monitor deformation and thermal behavior.
   • Purpose:
     • Detect microcracks, shrinkage-related gaps, or weld stress points that may not show up in room-temperature pressure tests.
     • Validate material ductility and stress profiles at -196°C.
2. Thermal Vacuum Chamber Testing (Dragon Capsule, Avionics, and Electronics)
   • Process:
     • Avionics units or entire pressure-sealed modules are placed in thermal vacuum chambers.
     • Chambers simulate space vacuum (low pressure) while cycling between hot (+100°C) and cold (-100°C) to mimic day-night orbital transitions.
   • Purpose:
     • Verify electronics performance, connector seal integrity, and structural resistance to thermal expansion in a vacuum.
     • Check for material outgassing, which can damage optics or electronics in orbit.
3. Engine Component Cooling Channel Tests (Raptor Engine)
   • Process:
     • Raptor’s regeneratively cooled combustion chamber is exposed to high internal pressure with a chilled fuel, like methane, circulated through internal channels.
     • Outer walls may be exposed to heat or thermal plasma to simulate firing conditions.
   • Purpose:
     • Test the thermal fatigue behavior of welded channel structures.
     • Ensure coolant flow maintains structural temperature limits under high chamber pressures.
4. . Valve and Plumbing System Qualification
   • Process:
     • Valves and manifolds undergo cold-soak at cryogenic temps (using LN2), followed by pressure actuation to simulate in-flight usage.
     • Includes multiple pressure cycles at different temperatures to simulate full mission profiles.
   • Purpose:
     • Ensure valve actuation speed and seal compression do not degrade under dual stress.
     • Prevent in-flight sticking or leaking caused by thermal contraction or pressure imbalances.
5. Starship Heat Shield Testing Under Flight Conditions
   • Emerging Testing:
     • Heat shield tiles and their mounts may undergo simulated aerothermal loads in vacuum test chambers.
     • Exposed to plasma jets (to simulate reentry) while monitoring back-surface pressure and structural deflection under mounted preload.

Instrumentation and Measurement in Coupled Testing

SpaceX outfits test articles with:

• Thermocouples and RTDs (resistance temperature detectors) for precise thermal profiles
• Strain gauges for detecting structural flex and expansion
• Pressure transducers for internal/external readings
• Displacement sensors to monitor warping or dome inflation
• Infrared cameras for thermal imaging
• Leak detectors (e.g., helium mass spectrometers)

All data is logged and analyzed in real time and compared against digital twins in simulation environments.

Value and Outcomes

Benefit	Description
Realistic Simulation	Closely replicates orbital, launch, and reentry environments
Design Validation	Reveals flaws in joint design, insulation, and materials
Material Qualification	Confirms behavior of metals, composites, and seals in dual-stress conditions
Safety Assurance	Reduces risk of catastrophic failure due to thermal or pressure-related stress
Flight Readiness Certification	Required by internal QA and external spaceflight regulators

Thermal-pressure coupled testing is indispensable for ensuring durability, safety, and performance in the extreme environments of space travel. For SpaceX, this type of testing is essential to validating reusable spacecraft like Starship and high-performance systems like the Falcon 9, pushing the boundaries of aerospace reliability.

Every measurement taken during the design and build of a SpaceX rocket is not just a number; it’s a commitment to safety. Metrology ensures repeatable, certifiable quality that astronauts can literally bet their lives on, and employees can trust while building and testing high-risk aerospace systems. It is, quite literally, the margin between life and death in spaceflight.

References:

1. NASA. (2020). Human spaceflight metrology and precision measurement practices. Retrieved from: https://nasa.gov
2. SpaceX. (2023). Falcon 9 and Starship user guides. Retrieved from: https://www.spacex.com/vehicles/
3. NIST. (2021). Role of metrology in manufacturing. National Institute of Standards and Technology. Retrieved from: https://www.nist.gov
4. ASME. (2022). Geometric Dimensioning and Tolerancing (GD&T) standards and applications.
5. Rosenberg, D. (2023). Advanced metrology in aerospace engineering. Journal of Aerospace Manufacturing, 48(2), 134–145.

• LinkedIn
• Facebook
• X
• Mail
• Print
